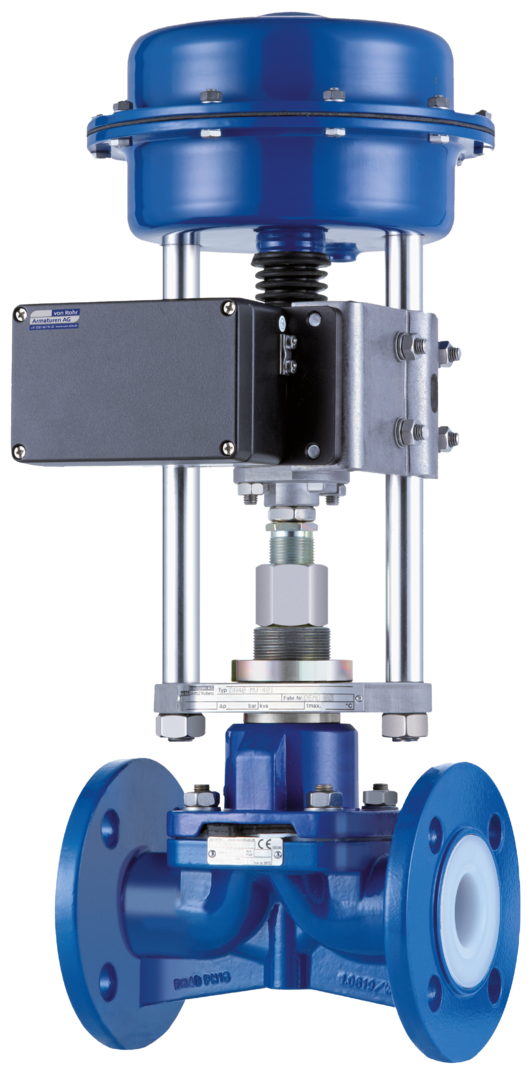

SPA-L Pneumatic Actuator, Bonnet Type

Name: SPA-L Pneumatic Actuator, Bonnet Type
Brand: Swissfluid AG

The SPA-L Bonnet pneumatic actuators are designed for the reliable operation of on/off and control valves. Their robust, modular design—which includes various actuator sizes and spring combinations—along with the option to add positioners and limit switches, makes them a versatile solution for industrial applications.

Main Features

Modular design for flexible configurations

The modular design allows for adaptation to different requirements. A variety of actuator sizes, spring combinations, and strokes provide flexibility in design.

Rugged design for industrial applications

The drive housings are made of coated steel as standard. Versions in stainless steel or electrolytically polished stainless steel are available as options.

Flexible adaptation to the fixture

The length and spacing of the pillars can be selected to suit the specific application. The coupling connects the drive spindle to the valve spindle.

A wide range of control and feedback options

With the right accessories, such as solenoid valves, limit switch boxes, and pneumatic or electropneumatic positioners, the actuator can be adapted to meet a variety of control and regulation requirements.

Expandable equipment for operations

Optional accessories such as minimum and maximum stroke limiters, manual emergency controls, silencers, and exhaust dampers allow for application-specific configurations.

Operating Conditions

depending on the choice of material

Print Range max. 7 bar
max. 102 psi for FC

Temperature −20 °C to +80 °C

Version	DIN	ANSI
Nominal Sizes	DN 15 – DN 150	NPS ½" – 6"
Flanges	EN 1092-1 B1 PN 16 / 40	ASME B16.5 RF CL 150
Overall Length	EN 558-1 Series 1	ASME B16.10
Housing	Cast steel 1.0619, RAL 5005	ASTM A216 WCB, signal blue
Lining	PFA, PFA-AS (conductive)	PFA, PFA-AS (conductive)

Model	double-acting DA or single-acting FC / FO
Control air	filtered compressed air (dry or lubricated)
Connection	NAMUR interface VDI/VDE 3845, some with mounting plate
Control pressure	max. 5 bar / 73 psi) for DA/FO
Actuating force	up to max. 27 kN – (6,198 lbf)
